Features-

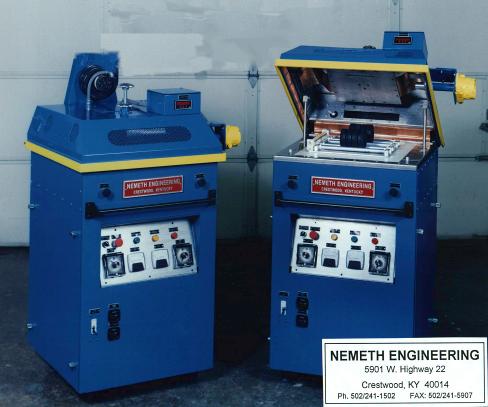

Model 75PH80

Power Output

7.5 Kilowatts

Preheating capability

(typical resins)

5 pounds in 1 min.

Top Electrode Dimensions

14” x 14”

Top Electrode Spacing

(Adjustable)

1 1/2” Minimum

6” Maximum

Oscillator Tube

Type V-5-6

Operating Frequency

80-90 MHz

D.C. Power Supply

Solid state diode, full wave, 3 phase

Electric Power Input

230 or 460 v. 3 ph

35 Amps/ph-230 V.

18 Amps/ph-460 V.

Automatic Hood, Compressed Air

80 PSI (Dry)

Hood Safety Barrier

Automatically Opens Hood, When Blocked

Controls and Indicators

Start /Stop Buttons

Lights

Ready, RF ON, O/L

Meters

Plate Current Meter

Grid Current Meter

Timers

Delay Start Timer

Heat Timer

Cabinet Dimensions (Approx)

30” x 32”

Height

54”

Working level

44”

Weight

750 pounds

Standard OPTIONS

Rotator, (specify size)

up to 3 rows

Remote Start

Yes

Temperature Sensor

Yes

Positive Exhaust System

Yes
