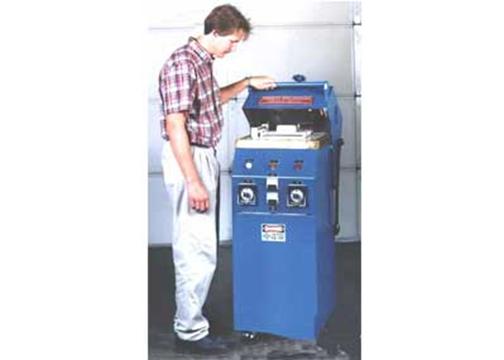

40PH80

Model

40PH80

Power Output

4 Kilowatts

Preheating capability

           (typical resins)

2 pounds in 60 seconds

Top Electrode Dimensions

8” x 8”

Top Electrode Spacing

             (Adjustable)

1 1/2” Minimum

6” Maximum

Oscillator Tube

Type V-5-6

Operating Frequency

80-90 MHz

D.C. Power Supply

Solid state diode, full wave

Electric Power Input

230 or 460 volts, 1 phase

  28 Amps  @ 230 V.

  14 Amps  @ 460 V.

Automatic Hood, Compressed Air

Manual, no air required

Hood Safety Barrier

N/A manual close, cycle starts when hood is closed.

Controls and Indicators

Stop Button

     Lights

Ready, RF ON, Overload

     Meters

Plate Current Meter

Grid Current Meter

     Timers

Delay Start Timer

Heat Timer

Cabinet Dimensions (Approx)

18” x 24”

     Height

51”

      Working level

44”

Weight (Approx)

400 pounds

Standard OPTIONS



     Rotator, (specify size)

1 row

     Remote Start

Yes

     Temperature Sensor

Yes

     Positive Exhaust System

Yes

     PLC Controller

Yes
