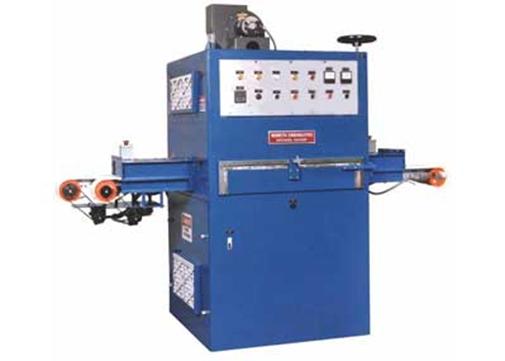

200PHC80

Conveyorized version of 200PH80

Features-

Model 200PHC80

Power Output

20 Kilowatts

Preheating capability

           (typical resins)

15 pounds in 1 minute

Top Electrode Dimensions

32”X 26”

Top Electrode Spacing

             (Adjustable)

2” Minimum

10” Maximum

Oscillator Tube

Type V-6-3

Operating Frequency

70-80MHz

D.C. Power Supply

Solid state diode, full wave, 3 phase

Electric Power Input

230 or 460 v. 3 ph

  100 Amps/ph-230 V.

  52 Amps/ph-460 V.

Automatic Hood, Compressed Air

80 PSI (Dry)

Hood Safety Barrier



Air operated door, no hood

Controls and Indicators

Start/stop buttons

     Buttons

Start/Stop

     Lights

Ready, RF ON, O/L

     Meters

Plate Current Meter

Grid Current Meter

     Timers

Delay Start Timer

Heat Timer

Cabinet Dimensions (Approx)

42” x 42”

     Height

73”

      Working level

42”

Weight (Approx)

1500 pounds

Standard OPTIONS



     Rotator, (specify size)

4 rows or more

     Remote Start



     Temperature Sensor



     Positive Exhaust System

Yes

     PLC Controller
