Radio Frequency / Dielectric Preheater Systems, Parts, and Service.

RF Preheaters.com

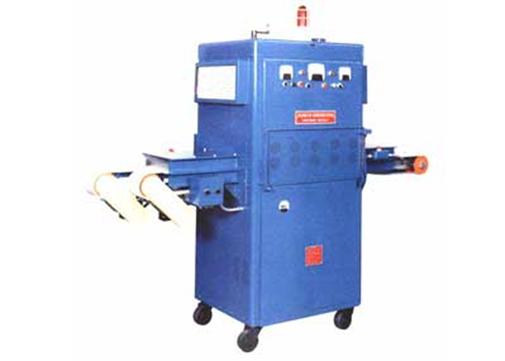

125PHC80

125PHC80

12.5 Kilowatts

10 pounds in 60 seconds

18” x 20”

1 1/2” Minimum

8” Maximum

Type V-6-3A

80-90 MHz

Solid state diode, 3 phase, full wave

230 or 460 volts, 3 phase

  60 Amps/phase @ 230 V.

  30 Amps/phase @ 460 V.

80 PSI (Dry)

Automatically Opens Hood

   When Blocked

Start and Stop Buttons

Ready, RF ON, Overload

Plate Current Meter

Grid Current Meter

Delay Start Timer

Heat Timer

40” x 40”

59”

49”

1000 pounds



up to 4 rows

Yes

Yes

Yes

Yes

Model

Power Output

Preheating capability

           (typical resins)

Top Electrode Dimensions

Top Electrode Spacing

             (Adjustable)

Oscillator Tube

Operating Frequency

D.C. Power Supply

Electric Power Input

Automatic Hood, Compressed Air

Hood Safety Barrier

Controls and Indicators

     Lights

     Meters

     Timers

Cabinet Dimensions (Approx)

     Height

      Working level

Weight (Approx)

Standard OPTIONS

     Rotator, (specify size)

     Remote Start

     Temperature Sensor

     Positive Exhaust System

     PLC Controller
